Design
• Box design
• Wall mounted hood
• Wall hood

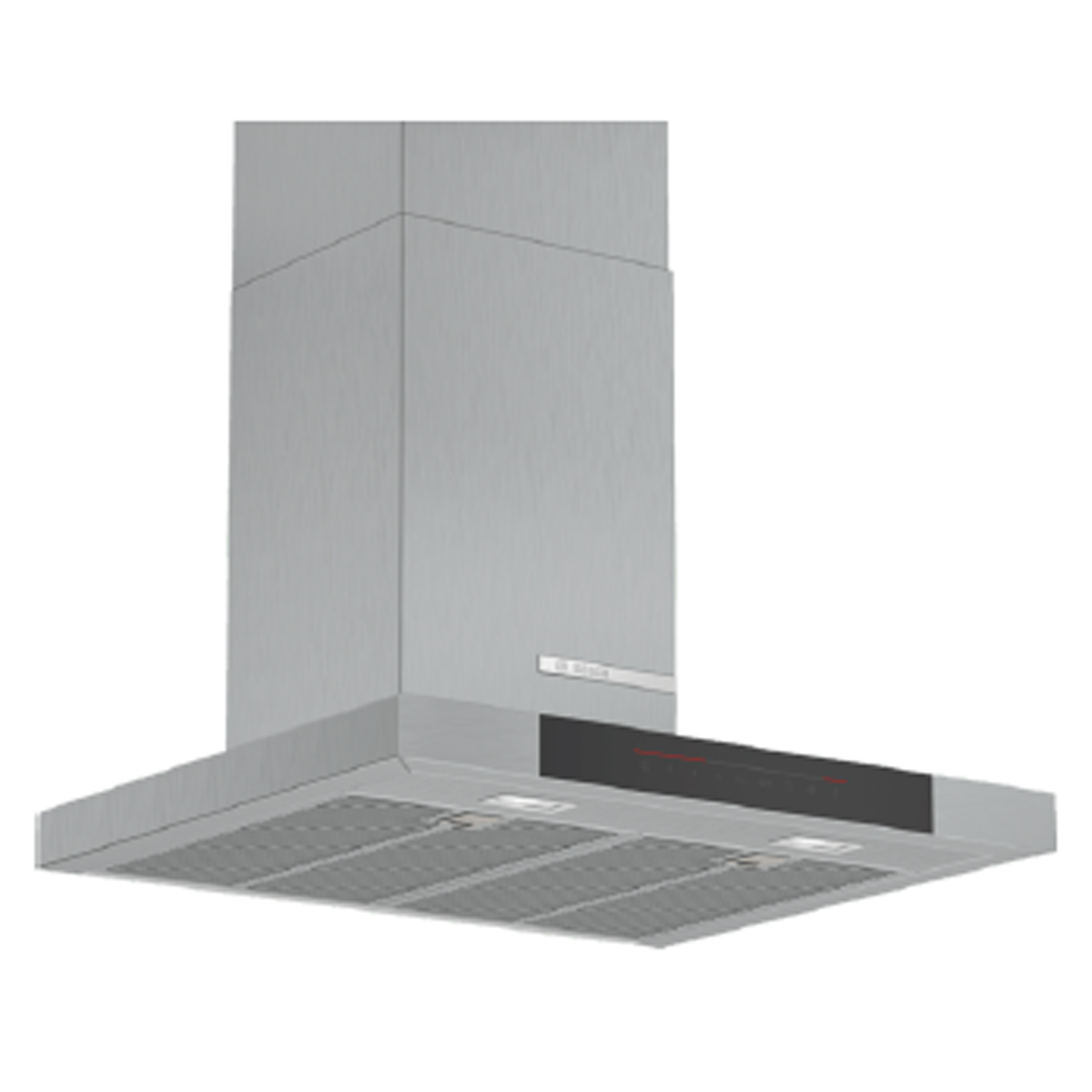

• 60 cm stainless steel Box design hood
• Touch control with lightline

Performance
• 3 speeds plus 2 intensive
• Extraction rate according to EN 61591 ø 15 cm: max. Normal use 413 m³/h Intensive 657 m³/h
• Noise level according to EN 60704-3 und EN 60704-2-13 exhaust air: Max. normal use: 61 dB(A) re 1 pW (48 dB(A) re 20 μPa sound pressure) Intensive: 71 dB(A) re 1 pW (58 dB(A) re 20 μPa sound pressure)
• Extraction rate in recirculation mode: Max. normal use: 281 m³/h Intensive: 322 m³/h
• Noise levels in recirculation mode: Max. normal use: 72 dB(A) re 1 pW (59 dB(A) re 20 μPa sound pressure) Intensive: 75 dB(A) re 1 pW (62 dB(A) re 20 μPa sound pressure)

Comfort
• Automatic revert setting, 6 minutes
• Automatic 10 minutes after running
• easy to clean innerframe
• Light dimmer function
• Softlight with dimmer function
• Efficient BLDC-technology
• 2 x 1.5W LED
• Light Intensity: 267 lux
• Colour Temperature: 3500 K
• Saturation display filter: grease- and charcoal filter
• Steel filter cover
• Steel filter cover, dishwasher safe
• Back-pressure flap: Yes
• Energy Efficiency Class: A
• Average Energy Consumption: 34.7 kWh/year*
• Blower Efficiency Class: A*
• Lighting Efficiency Class: A*
• Grease Filtering Efficiency Class: B*

Technical information
• Suitable for ducted or recirculating operation only
• Recirculation kit or clean air kit
• Chimney hood wall fixing system
• Dimensions recirculating with CleanAir module (HxWxD): 689 x 598 x 500 mm – mounting with outer chimney 795-1139 x 598 x 500 mm – mounting with telescopic chimney
• Dimensions exhaust air (HxWxD): 614-954 x 598 x 500 mm
• Dimensions recirculating (HxWxD): 614-1064 x 598 x 500 mm
• Diameter pipe Ø 150 mm (Ø 120 mm enclosed)
• Total Connected load: 143 W
• Connecting cable 130 cm
• Voltage: 220 – 240 V
* In accordance with the EU-Regulation No 65/2014
